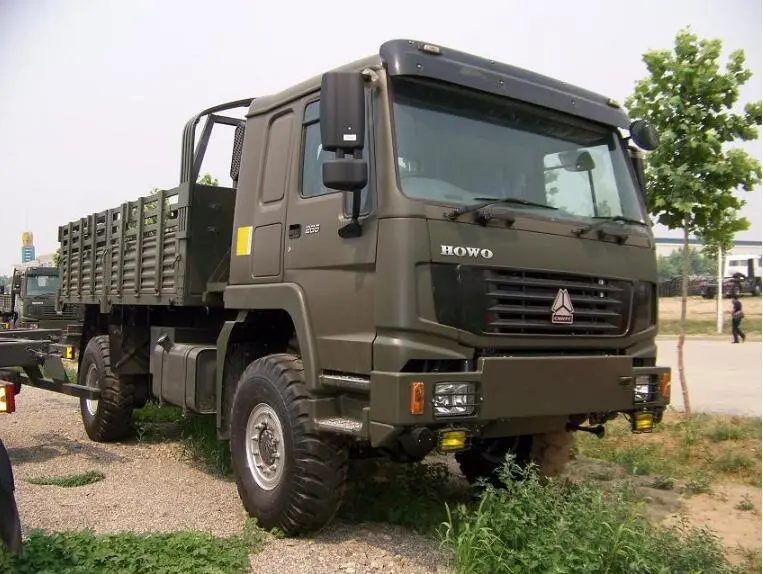

Sinotruk HOWO 4X4 All Wheel Drive Cargo Truck

Parameter	Details
Brand	SINOTRUK HOWO
Drive Form	4×4 All Wheel Drive
Horsepower	290hp
Payload	20 Tons
Emission Standard	Euro II
Core Advantage	Off-road passability, differential lock, full-time four-wheel drive
Cargo Box Size	5500×2500×600mm
Color	Optional
Condition	New Customized
Drive Type	Left-hand drive / Right-hand drive

Product Overview

Mettlead Truck SINOTRUK HOWO 4X4 All Wheel Drive Cargo Truck (Model ZZ2167M4627A) is a professional off-road heavy-duty cargo vehicle specially developed for complex road conditions, mountainous areas, pastoral areas and non-paved construction sites. Adopting full-time 4×4 all-wheel drive configuration and high-torque heavy-duty engine, this truck features super off-road passing performance, strong load-bearing capacity and ultra-high operational stability. With customized off-road chassis, differential lock system and multi-angle adaptive driving performance, it perfectly adapts to harsh working environments that ordinary two-drive cargo trucks cannot cope with. It is the preferred reliable transportation equipment for field engineering, remote material transportation and special terrain cargo delivery projects worldwide.

Extended Description

The HOWO 4X4 all-wheel drive cargo truck is equipped with a classic WD615.87 diesel engine compliant with Euro II emission standards, with a maximum power of 290HP and peak torque of 1150Nm, providing strong low-speed torque reserve and stable power output under heavy loads and complex road conditions. Matched with HW15710C 10-forward and 2-reverse professional off-road transmission gearbox, it realizes precise gear shifting and reasonable power distribution, adapting to climbing, cross-country and heavy-load transportation scenarios.

The whole vehicle adopts professional 4×4 all-wheel drive system, equipped with ZQC1200 high-low grade transfer case and front/rear axle differential lock device, which greatly improves vehicle passing ability on muddy, snowy, rugged and steep roads. The reinforced U-profile ladder frame and cold-riveted cross-member structure enhance the overall rigidity and impact resistance of the chassis. Equipped with 12.00-20 professional off-road tires and heavy-duty steel rims, it delivers excellent anti-skid and wear-resistant performance. The humanized HW76 long cab with complete heating, ventilation and air conditioning system effectively reduces driver fatigue during long-distance field operations, realizing long-term stable and efficient transportation work.

Key Features & Core Advantages

1. Powerful Euro II Off-Road Power System

Powered by SINOTRUK STEYR WD615.87 inline six-cylinder water-cooled turbocharged intercooled diesel engine, with 290HP maximum power and 1150Nm wide-range constant torque output. The engine features low fuel consumption, strong explosive power and stable operation. It can maintain sufficient power output under full-load climbing and cross-country conditions, fully meeting the power demand of harsh environment transportation. The 195g/kWh low specific fuel consumption design effectively reduces long-term operating costs.

2. Professional 4×4 All-Wheel Drive Off-Road Configuration

Adopting full-time 4×4 all-wheel drive form, matched with ZQC1200 high-low speed transfer case (high/low gear ratio 1:1.75) and front/rear axle differential lock system. The four-wheel synchronous power output effectively avoids wheel slipping on muddy, slippery and rugged roads. The maximum gradeability reaches 29%, and the minimum ground clearance is 314mm, with excellent cross-country passing performance, adapting to all kinds of extreme complex terrains.

3. Reinforced Heavy-Duty Chassis & Super Load-Bearing

The chassis adopts integral U-profile parallel ladder frame and reinforced subframe, with all cold-riveted cross-member structure, strong torsion resistance and impact resistance. The front steering drive axle adopts planetary wheel reduction structure, and the rear ST16 axle supports central reduction and hub reduction with differential lock. The whole vehicle has a payload of 20 tons and a gross vehicle weight of 20000kg, with stable heavy-load transportation performance and strong durability.

4. Complete Safety & Braking System

Equipped with dual-circuit compressed air service brake, spring energy storage parking brake and engine exhaust auxiliary brake, forming a three-level safe braking system. Optional WABCO ABS anti-lock braking device effectively prevents wheel locking during emergency braking and improves driving safety on slippery roads. The 32° approach angle and 24° departure angle further optimize off-road safety performance and avoid chassis scratching.

5. Comfortable Long-Distance Operation Cab

The HW76 long steel cab is equipped with double seats and a single sleeping berth, matched with hydraulic damping adjustable driver’s seat, independent heating and ventilation system and air conditioning system. Equipped with adjustable steering wheel, exterior sun visor and safety belt, it provides a comfortable driving environment for long-term field and cross-country operations, greatly improving driving comfort and operational sustainability.

6. Durable & Long-Endurance Design

Configured with 400L large-capacity aluminum alloy fuel tank, effectively extending single-operation cruising range and reducing frequent refueling. The 24V professional vehicle electrical system is equipped with high-power generator and large-capacity batteries, with stable power supply and strong adaptability to extreme environments. The whole vehicle is optimized for field working conditions, with low failure rate and long service life.

Wide Application Scenarios

This HOWO 4×4 all-wheel drive off-road cargo truck is widely applicable to mountain road transportation, field engineering material transportation, pastoral area freight, mining site material distribution, road construction support, emergency rescue transportation and other harsh working conditions. It is an indispensable high-passing and high-load professional transportation vehicle for outdoor engineering and special terrain logistics.

Full Detailed Product Parameters

Parameter Item	Detailed Specification
Model	ZZ2167M4627A
Brand	SINOTRUK HOWO
Drive Type	4×4 All Wheel Drive, LHD
Engine Model	WD615.87
Emission Standard	Euro II
Max Power	290HP / 213kW @ 2200rpm
Max Torque	1150Nm @ 1100-1600rpm
Engine Displacement	9.726L, 6-cylinder in-line water cooling turbocharged
Transmission	HW15710C, 10 Forward & 2 Reverse Gears
Transfer Case	ZQC1200, High/low grade ratio 1/1.75
Front Axle	STR steer drive axle with planetary wheel reduction
Rear Axle	ST16 heavy-duty axle, differential lock, 5.73 speed ratio
Steering System	ZF8098 hydraulic power steering
Fuel Tank Capacity	400L Aluminum Alloy Fuel Tank
Rim & Tire	8.5-20 steel rim, 12.00-20 tire (6+1 spare tire)
Braking System	Dual-circuit air brake + exhaust brake, ABS optional
Cab Configuration	HW76 long cab, 2 seats + 1 berth, with A/C & heating
Cargo Box Size	5500×2500×600mm
Overall Dimension	8568×2500×3200mm
Wheelbase	4600mm
Payload	20 Tons
Dead Weight	9300kg
Gross Vehicle Weight	20000kg
Max Speed	76km/h
Max Gradeability	29%
Min Ground Clearance	314mm
Fuel Consumption	35L/100km
Electrical System	24V negative grounded system
Vehicle Condition	New Customized
Drive Type	Left-hand drive / Right-hand drive (Optional)
